NWSD SCX10.2 Class 1 V3 DSM

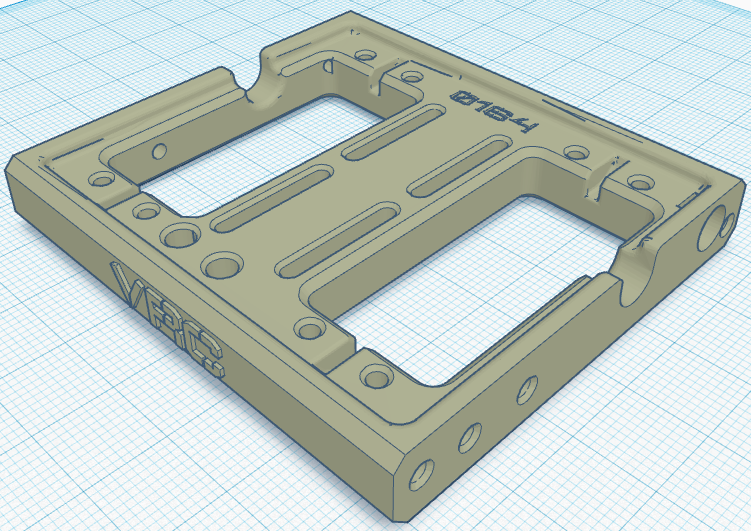

This is a Dual Servo Mount for the NWSD SCX10.2 Class 1 V3 Chassis.

The mounting holes for this mount are designed to exactly match the frame rail of the Class 1 V3, including a notch for the pan-hard screw head that allows the mount to sit flush against the rails.

Measurements for the mount are:

• Width - 70mm
• Length - 65mm
• Height - 10mm

Recommended Mounting Hardware:

• M3 X 8mm x 2 (Center 2 holes)
• M3 X 10mm x 4 (Front and Rear holes)

For more color choices please visit SCX10.2 Class 1 V3 DSM on Shapeways
